Description

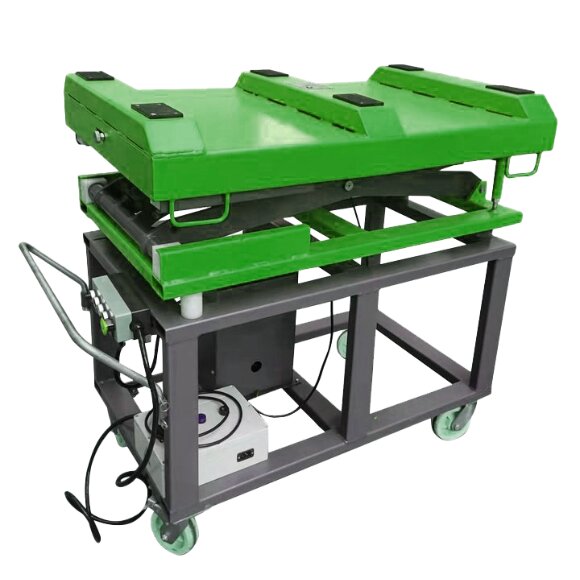

The Floating Movable Platform is a heavy-duty, precision lifting solution designed for safe, efficient, and controlled vehicle or equipment handling. Built for demanding shop environments, it combines high load capacity with advanced stability features to streamline maintenance and service operations.
Engineered to lift up to 3,306 lbs, this platform provides smooth and reliable performance powered by a dual lifting system with scissor arms and hydraulic cylinders, ensuring balanced elevation and structural stability throughout the lift cycle. Adjustable angles allow for precise positioning, making it ideal for detailed service work, especially in battery maintenance and component access tasks.
Operator control is simplified and secured through a pendant controller, keeping lift and lower functions safely at hand. Multiple built-in safety systems including step-by-step limit racks, lock-out mechanisms, and electromagnetic travel limit protection help prevent over-travel and ensure controlled operation at every stage.
Designed with mobility and flexibility in mind, the platform features swiveling and fixed casters with integrated brakes, allowing for easy repositioning while maintaining stability during use. Its streamlined design also improves workflow efficiency, particularly during battery replacement and service procedures.
With a rapid lift time of 20–30 seconds and controlled lowering between 10–120 seconds, the system is optimized for both speed and precision. Powered by 220VAC single-phase (60 Hz) with a 10.75 kW motor, it delivers industrial-grade performance in a compact footprint of 100 × 38 × 43 inches and a net weight of 1,102 lbs.
Additional specifications include a maximum lift height of 74.41 inches, making it suitable for a wide range of service applications where elevation access, safety, and control are critical.
